Revolution Y-G
Art. nr.: 519114Revolution Y-G is a gas-powered frame for height-adjustable desks. The frame is included in our “Revolution” series, one of the lightest and most material-efficient adjustable frames on the market. The series includes Y and T models, named after the shape of their legs. The models are available with either electric or manual adjustment. The series also includes the single-pedestal frame One-G.
Color
Silver
Black
White
Contact

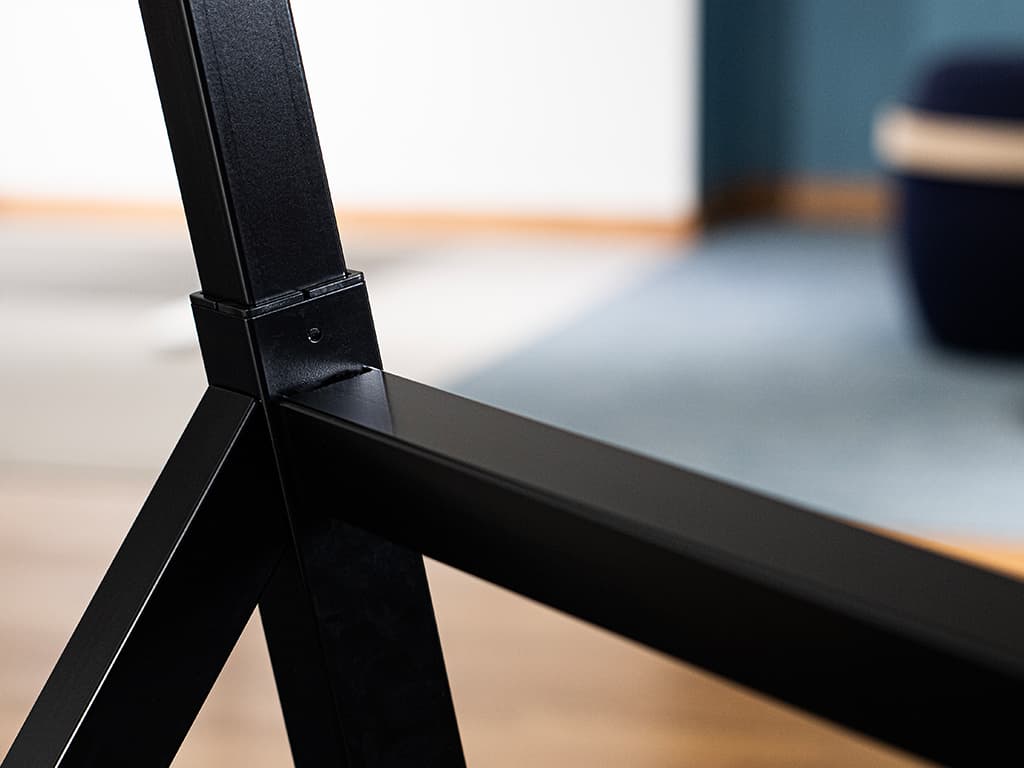

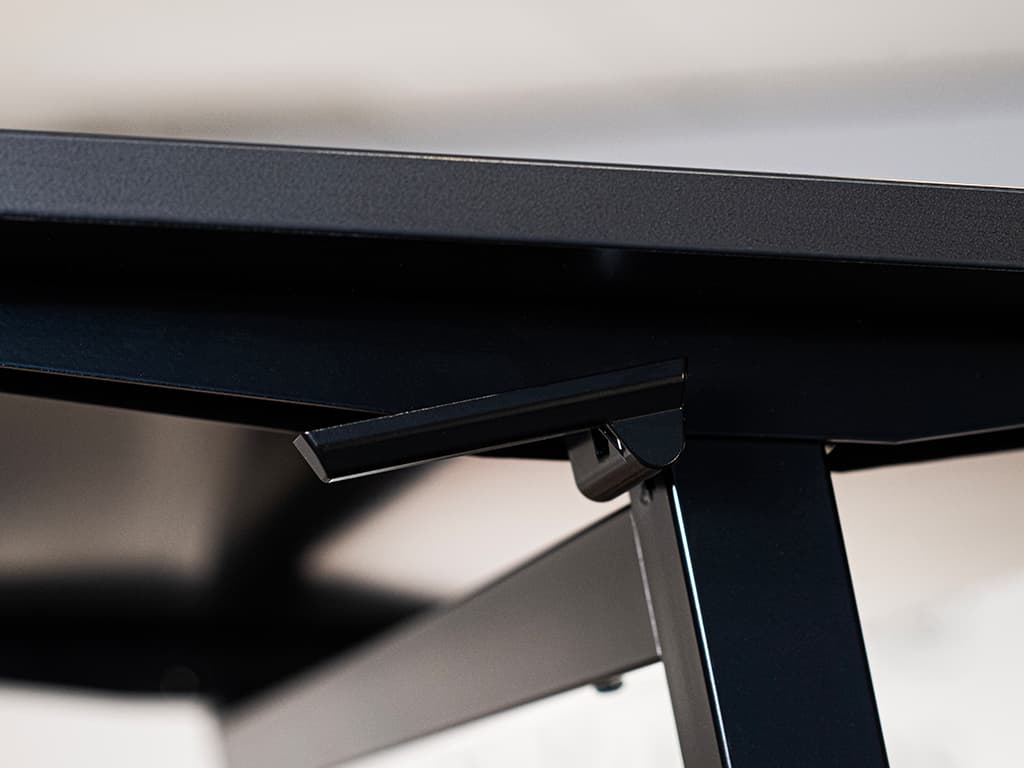

Revolution Y-G is a neat and compact frame for sit-stand desks, providing an ergonomic working environment at home or in a small office. Its size is designed to accommodate a laptop, notebook, mouse, and desk lamp—everything you need for a comfortable workspace. Height adjustment is operated via a lever and powered by gas, making it independent of electricity so it can be placed anywhere. The frame features a stylish Scandinavian design with two-part square tubes, where the Y-shaped leg gives the desk its distinctive character. The “Revolution” series also offers larger, electrically powered models, allowing you to choose the suitable desk setup to your needs.
Specifications
Adjustable heightYes
Powered byGas
Stroke440 mm (680-1120 mm ± 5 mm)
Lift capacityMax 15 kg
Frame dimensions (WxD)B866 mm +35 mm spak x D523 mm
Dimensions tabletopsB900-1000 x D600 mm
Area of useIndoor
LifetimeMin 3000 cycles
Weight15,2 kg
Weight without packaging14,1 kg
Certifications/ComplianceMöbelfakta READY, EPD
Packing methodSingle-piece carton
Carton sizeB800 x D240 xH165 mm
Units/pallet15
Standard colorsSilver, Black, White
Country of originSweden
Guarantee5 year
Show more specifications
Files
Assembly instructions:
