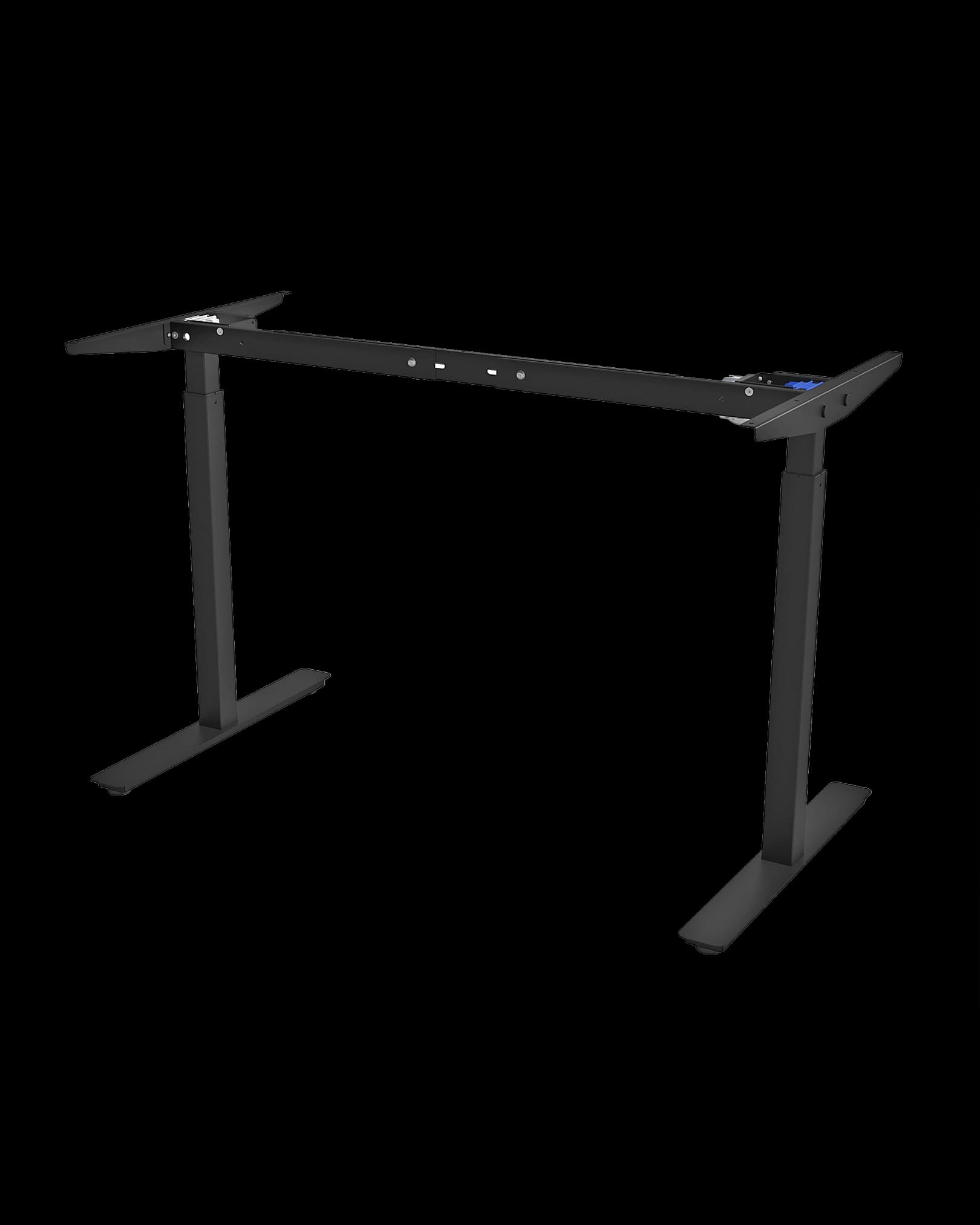

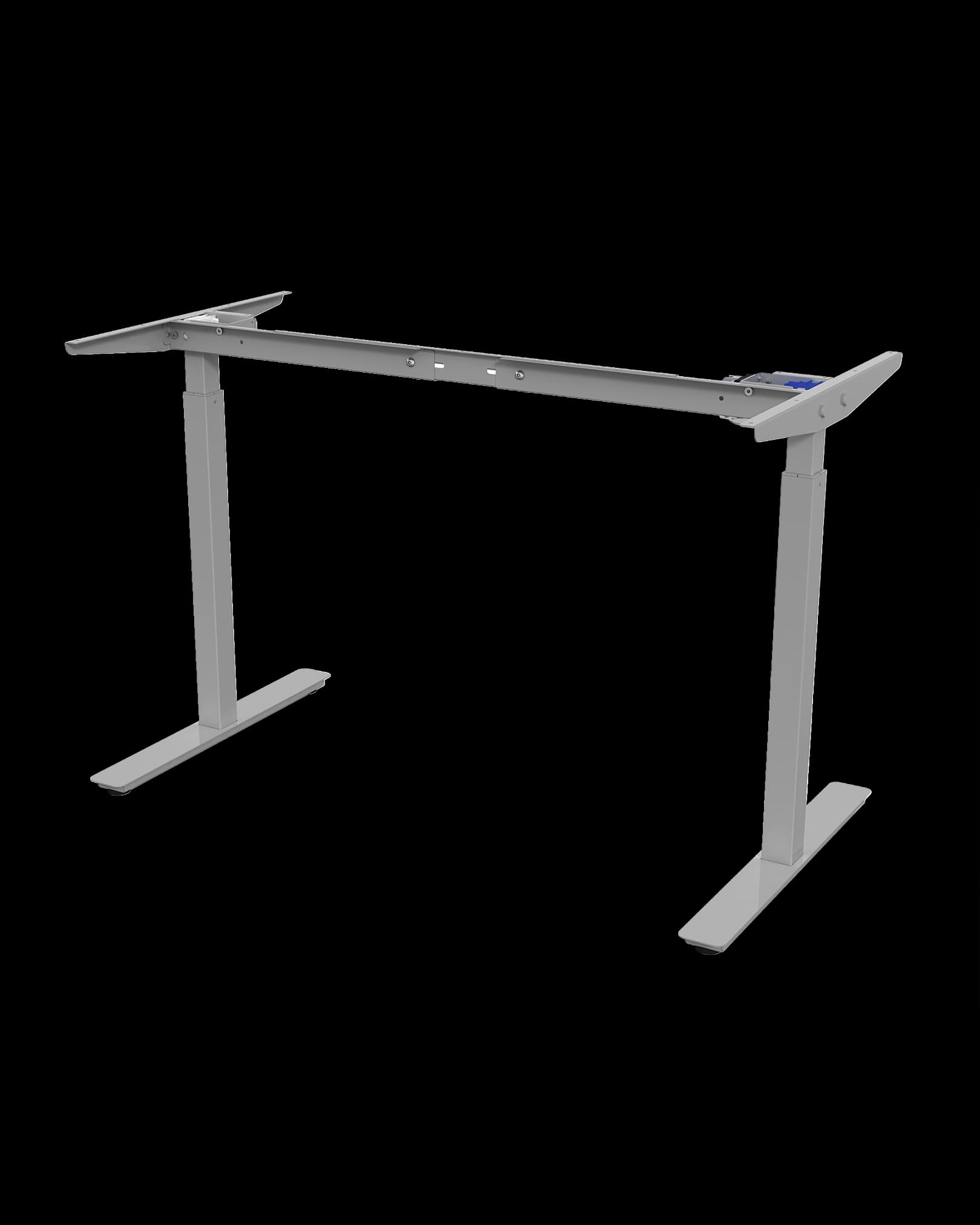

Revolution T-1M
Art. nr.: 519314Revolution T-1M is an electric frame for height-adjustable desks. The frame is included in our “Revolution” series, one of the lightest and most material-efficient adjustable frames on the market. The series includes Y and T models, named after the shape of their legs. The models are available with either electric or manual adjustment. The series also includes the single-pedestal frame One-G.
Color
Silver
Black
White
Contact
The Revolution T-1M is a neat and flexible frame for for sit-stand desks, providing an ergonomic working environment at home or in a small office. The frame’s adjustable length allows it to be easily adapted to any table top. It features a stylish Scandinavian design with two-part square tubes, where the T-shaped leg gives the desk a classic look.. This model is equipped with a single motor. The series also includes manually adjustable frames, which are independent of electricity and can be placed anywhere, allowing you to choose the suitable desk setup to your needs.
Specifications
Adjustable heightYes
Powered byElectricity
Stroke470 mm (660-1130 mm ± 5 mm)
Lift capacityMax 65 kg
Speed25 mm/sec
Standby power0,1 W
Noise level≤ 42 dB(A)
Frame dimensions (WxD)B996-1500 x D595 mm
Dimensions tabletopsB1000-1600 x D600-800 mm
Intermittent operation10%, 1 min/9 min pause. Max 2 min/18 min.
Area of useIndoor
Control unit functionsOverload protection, Temperature protection, S-Touch (integrated sensor), SSP (Swedstyle System Protection)
LifetimeMin 5 000 cycles
Weight15,8 kg
Weight without packaging14,7 kg
Certifications/ComplianceCE, EN 527-1:2011 Type D, EN 527–2:2016 + A1:2019, Möbelfakta READY, EPD
Packing methodSingle-piece carton
Carton sizeB800 x D240 x H165 mm
Units/pallet15
Standard colorsSilver, Black, White
Country of originSweden
Guarantee5 year
Show more specifications
Files
Assembly instructions:
